MCP-Series Switchgear Master Control Panel

Isolated or Line-up Integrated Switchgear Master Control Panel

Logo-APTView-Enabled-APT-Power

Switchgear Master Control Panel

The MCP-Series is one of our most popular items on our switchgear master control systems lineup. It is available in NEMA 1 indoor or NEMA 3R outdoor construction.

Operator Interface

  • 20” Color touch-screen
  • Microsoft Windows
  • APT industrial computer (AiPC) equipped with the powerful APTView Control & Monitoring Software
  • Provides SCADA graphical user interface (GUI) for control and monitoring of the MCP functions
  • Allows MCP functions to provide the following:
    • System One Line
    • Storage of all the monitored data every minute with date and time stamp
    • Emails can be sent upon any triggered event condition
    • Free license remote monitoring and remote-control software
    • Capability of remote system troubleshooting
    • Adjustable setpoints and modes of operation to allow user to adopt the system operation to changing needs
Automatic paralleling Switchgear Control Panel

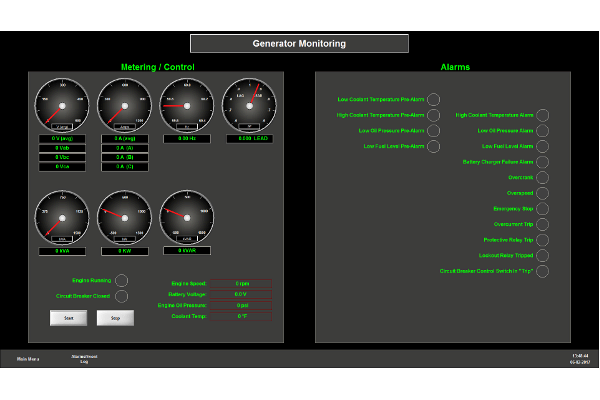

APTView-Virtual-Remote-Switchgear-SCADA-System-APT-Power-Generator-Monitoring
CCMM-Series-Caterpillar-Communications-Integrator-Panel-Industrial-Control-Panels-CCM-to-Modbus-Protocol-Conversion-Module-APT-Power

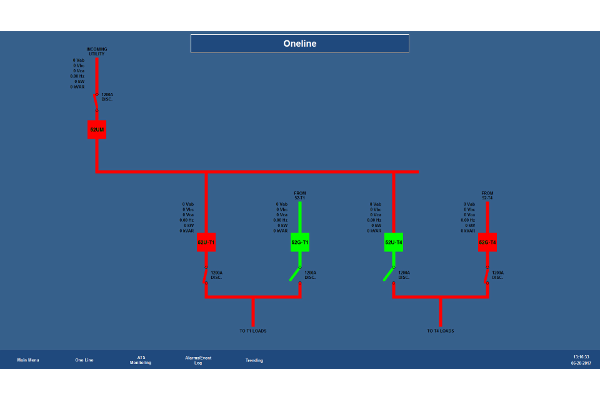

APTView-Virtual-Remote-Switchgear-SCADA-System-APT-Power-Oneline

Operation Overview

MCP-Series Master Control Panel provides native interfaces to APT Automatic Paralleling Switchgear Control panels, APT Master Control Panels, and most 3rd party controllers via following native interfaces:

  • Modbus TCP/IP Ethernet, Modbus RTU, or Modbus ASCI serial (RS-485/RS-232)
  • Analog voltage interfaces: 0-5 VDC, +/- 10 VDC, 0-3 VDC, 0-10 VDC, +/- 5 VDC< +/- 3 VDC, etc.
  • Analog current interfaces: 4-20mA, 0-20mA
  • Microprocessor controlled potentiometer
  • Digital signals: 24 VDC, 48 VDC, 125 VDC, 120 VAC, etc.

Custom Interfaces to 3rd party devices such as (Profibus, DNP, CAN, BACnet, SAE J1939, Caterpillar Data Link, etc.) are available upon request.

APT MCP-Series provides Modbus TCP/IP Ethernet, over copper of fiber, supervisory control, and data acquisition interface to higher level SCADA, DCS, or building management system.

Control Interface

  • Windows 10 Operating System
  • Minimum 8GB of RAM
  • Minimum 128GB Solid State Drive (SSD)
  • Smartphone-compatible
  • Native resolution of 1920 x 1080
  • Wide angle aspect ratio 16:9
  • Viewing angle of 178°(h) x
    178°(w)
  • Horizontal Scan Rate 30-82 kHz
  • Vertical Scan Rate 50-75 Hz
  • Contrast 3000:1
  • 16.7 million colors
  • 10 touch projected capacitive (PCAP) with Thru-glass capabilities that pass UL-60950 & IK-07 Impact testing
  • Operating Temperature:
    • 0°C to 40°C (32°F to 104°F)
  • Operating Humidity (non-condensing):
    • 20% to 80%
APT-Virtual-Switchgear-SCADA-System-Oneline-Industrial-Personal-Computer-AiPC-apt-power

Advanced Power Thought

What is APTView?

  • The concept of remote access switchgear control makes safety the top priority.
  • It isolates switchgear operation personnel from the live components of a switchgear. It also allows for operator control from a remote location or an isolated master control station.
  • Operators can have the peace of mind that they are utilizing the safest means of operating circuit breakers possible. This is done by eliminating the need for an operator to be anywhere near live or potentially live equipment.
  • APTView is APT’s own Supervisory Control and Data Acquisition (SCADA) system.
  • It utilizes Human Machine Interface (HMI) systems to monitor and control both APT and 3rd party equipment via personal computers or your favorite web or network-connected mobile device.
    • Requires fast internet connection and Static IP.
  • Customer specified security features to limit access only to the people who need access for maximum security.
  • See pages 7-9 of the MCP-Series Switchgear Master Control Panel brochure for our control system modules associated with APTView.
