(2.4kV-38kV) Metal Enclosed Paralleling Switchgear Front Access 38.5″D Compact, 72″D Compact, Generator Output Protection Switchgear, Bus Enclosures, Load Interrupter Switchgear, Motor Control Switchgear
• Utility & Generator Paralleling Automatic Transfer Applications
• Utility Intertie, Main-Tie-Main, & Medium Voltage Distribution Switchgear Applications
• Cogeneration, Solar, & Microgrid Applications
• Prime Power & Emergency Power Applications
Generator switchgear refers to the collection of switches, circuit breakers, relays, and other equipment used to control, protect, and isolate power generators in an electrical power system. It is an essential component of power generation and distribution systems, ensuring the safe and reliable operation of generators.
Here are some key components and functions of generator switchgear:
1. Medium & Low Voltage Circuit Breakers: These are devices designed to interrupt the flow of electrical current in the event of a fault or overload. They are used to isolate the generator from the rest of the electrical system during maintenance or in case of emergencies.
2. Medium Voltage Disconnect Switches: These switches are used to physically isolate the generator from the electrical system for maintenance or repair purposes. They ensure that no current flows to or from the generator while work is being performed.
3. Protection Relays: These devices monitor various parameters such as voltage, current, and frequency to detect abnormal conditions such as overloads, short circuits, or voltage fluctuations. When a fault is detected, protection relays trip the circuit breakers to isolate the generator from the system and prevent damage.
4. Advanced Monitoring: Advanced switchgear monitoring solutions can integrate with local supervisory control and data acquisition (Local SCADA) systems and energy management systems (EMS) to provide comprehensive visibility and control over power distribution. Integration with SCADA and EMS enables centralized monitoring, control, and optimization of switchgear operations in coordination with other grid assets.
Generator switchgear can vary significantly in size and complexity depending on the size of the power generation facility and the specific requirements of the electrical system. It plays a crucial role in ensuring the safety, reliability, and efficiency of power generation and distribution systems.

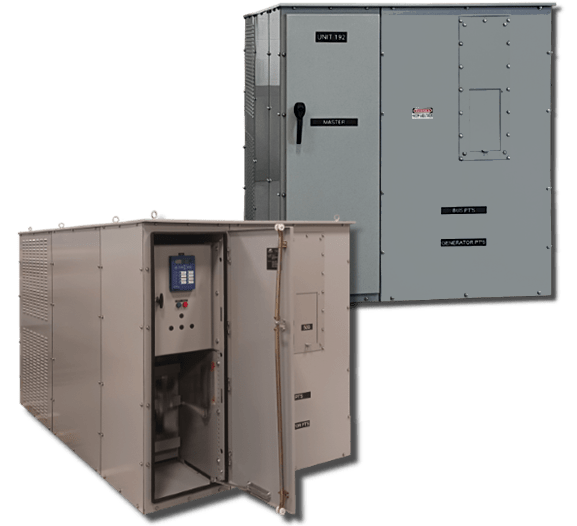

This front access compact Pad Mounted Medium Voltage (2.4kV – 38kV) Switchgear is a Generator Integrated Power Center that uses innovative design methods and technology. This allows for the smallest footprint available on the market, while still offering an integrated transformer, output protection, and circuit breaker access. This product is easily maintained and is environment friendly.

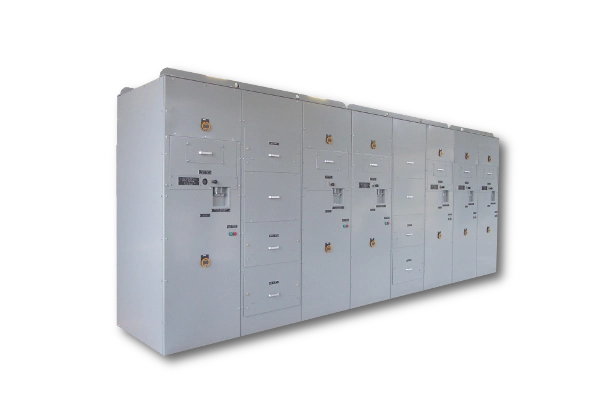

The APT Front Access Compact air insulated SF6-free Medium Voltage (5kV – 15kV) Switchgear uses state-of-the-art innovative switchgear design methods and technology. This allows for the smallest footprint available on the market. It also allows a lighter design that offers the peace of mind of visual assurance of full disconnection through the main bus connection window.

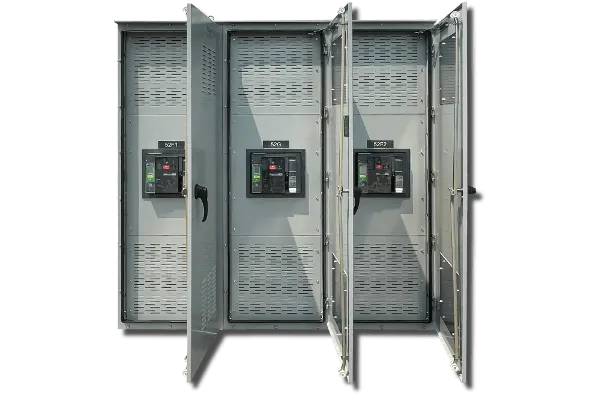

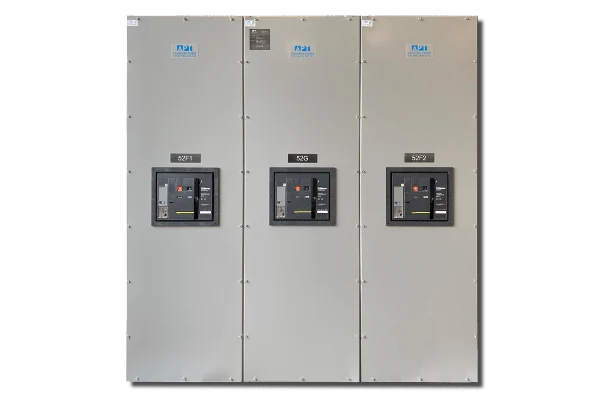

This low Voltage Output Protection Switchgear features a Circuit Breaker Cabinet for use with Diesel & Gas Generators. It is easy to maintain and environmentally friendly. The GenProtectM-Series is 100% Air Insulated. Its remote controllable design increases operator safety. That also applies to its provision for connecting field grounding cables. You do not need to tape or boot field cable terminations. In addition, you get to choose generator protective relay functions for this switchgear.
This Medium Voltage Output Protection Switchgear features a Circuit Breaker Cabinet for use with Diesel & Gas Generators. It is easy to maintain and environmentally friendly. The GenProtectM-Series is 100% Air Insulated. Its remote controllable design increases operator safety. That also applies to its provision for connecting field grounding cables. You do not need to tape or boot field cable terminations. In addition, you get to choose generator protective relay functions for this switchgear.
The GenProtect-P Paralleled Generator Distribution Switchboard is a high end powerful solution to your application. It features an insulated case circuit breaker panel in a floor-standing enclosure. Power Distribution Switchgear can be used in a variety of applications. That includes Uninterruptable Power Supply (UPS) paralleling and power distribution to loads requiring advanced circuit breaker features. Those features include high interrupting rating or draw-out capability.
This Medium Voltage Output Protection Switchgear features a Circuit Breaker Cabinet for use with Diesel & Gas Generators. It is easy to maintain and environmentally friendly. The GenProtectM-Series is 100% Air Insulated. Its remote controllable design increases operator safety. That also applies to its provision for connecting field grounding cables. You do not need to tape or boot field cable terminations. In addition, you get to choose generator protective relay functions for this switchgear.
