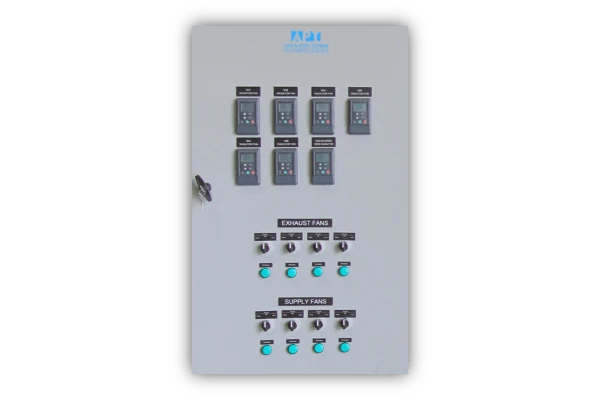

MotorGo-Series Motor Starter Panel

Wall Mountable Motor Starter Panel with Motor Branch Circuit Protection, Contactor(s), & Overload Protection

Site Map

Motor Starter Panel Information

APT MotorGo-Series Motor Starter Panels offer flexible configurations for your application. Annunciation can be displayed using discrete LED’s, or by use of a color touchscreen. Annunciation Panels can be provided in a separate control cabinet, or as an integral part of an APT system. We’ll work with you to determine what features and how to best annunciate the items you wish to monitor. Please contact us for more information.

Digital & Analog Annunciation

UL Listed Industrial Control Panel
Wall-mount
APT annunciators customized & configured for your specific application
Annunciation Displays:
- Discrete LED’s
- 20” or smaller Color touchscreen
Digital Touchscreen Displays
- Displays EMCP information acquired via EMCP MODBUS datalink
- Frequency
- Vab, Vbc, Vca
- Ia, Ib, Ic
- kW
- Oil Pressure (PSI)
- Coolant Temp (deg F)
- Battery Voltage
- Engine Speed (RPM)
- Operating hours
Annunciate virtually anything that has a dry contact, or a Modbus address
- Generator Sets
- ATS’s
- Doors
- HVAC systems
- Temperatures
- Pressures
Include basic controls:
- ESTOP Pushbutton
- Start/Stop Switch
Annunciators can be provided in a separate control cabinet, or as an integral part of an APT system
We’ll work with you to determine what features and how to best annunciate the items you wish to monitor
Annunciates:
- Status
- Pre- Alarm
- Shutdown
Option to receive an email with alarm indication
Lamp test pushbutton
Alarm acknowledge pushbutton
Emergency stop pushbutton
Alarm Horn
Ringback feature
- Upon alarm, light flashes and horn sounds until acknowledged, which steadies the light and silences the horn
- Lamp extinguishes once alarm input normalizes

Generation Monitoring & Control

Application Configurations:
- Single Generator Power Distribution & Protection
  - Pyrometer w/ Thermocouples Selector Switch
- Automatic Paralleling of Multiple Generators
  - Inhibits Closing of Multiple Generators to a Dead Bus Simultaneously
    - First Up – First On Logic connects first available Generator that builds up voltage and frequency to a Dead Bus
  - Manual Paralleling Controls
    - Synch Check Relay
    - Synch Lights
  - Sustained Utility-Generator Paralleling Operation
  - Facility Load Shed
Complete Generator Protection
Complete Generator & Bus Metering
Start/Stop Interface
Direct Sensing Up to 690V (No Switchgear PTs Required)
SCADA-ready Modbus Comm. Port for Monitoring & Control
Three position Engine Control Switch (run/start, off/reset, auto)
Voltage adjust rheostat or switch
Indicating lamps (Discrete LED’s)
- Status (Green Indicating LED)
  - Panel Energized
  - Engine Ready
- Alarms (Amber Indicating LED)
  - Common Alarm
  - Engine Off
- Shutdowns (Red Indicating LED)
  - Emergency Stop
Optional Analog Circuit breaker Control
Fiber/Ethernet Communications Converter
Custom Application Identification Labels
APT standard 100W, 120VAC to 24VDC Power Supply
Unwired terminal blocks for customer use
Din rail mountable ATS Ride through Capacitor wired to mounted Annunciators
ATS Annunciators
Generator Annunciators
Optional Analog Circuit breaker Control
Fiber/Ethernet Communications Converter
Custom Application Identification Labels
