FS2-Series 208V-480V GLQC Switchboard

208V, 480V Portable Generator Quick Connection Switchboard

Home » Power System Products » Generator / Loadbank Quick Connection » FS2-Series Generator / Load Bank Quick Connection Switchboard
Advanced-Power-Technologies-APT-Lafayette-Indiana-Web-Logo
Sidebar-Contact-Us-APT-Power

Site Map

Logo-APTView-Enabled-APT-Power

SAFE  SMART SERVICEABLE SECURE SWITCHBOARD

The FS2-Series allows quick and safe connection of a mobile generator set to facilities experiencing loss of power or temporary loadbank for permanent generator testing. This portable generator quick connection switchboard is rated Type 3R for outdoor installation. Permanent installation and connection of the switchboard to the facility power distribution system will minimize any unplanned power outages. Therefore, it provides easy and safe connection of a temporary loadbank. The primary components of the portable GLQC Quick Connection Switchboard are cam-lok type receptacles and a fixed mount insulated case circuit breaker.

Portable Generator Quick Connection Switchboard

General Features

  • Floor-Standing
  • Silver plated copper bus
  • UL891 Listed
  • Rating: 800 – 3000A, 480V (3Ø)
    • 65kAIC (800 – 2000A)
    • 100kAIC (over 2000A)
  • Color coded, male ‘Cam-lok’ E1016 compatible single pole receptacles with cover
Cam-Lok-Pole-Receptacles-Portable-Generator-Quick-Connection-Switchboard-APT-Power

Specific Color Coding for 480V Model

  • A phase – Brown
  • B phase – Orange
  • C phase – Yellow
  • Neutral – White
  • Ground – Green

FS2-Series

Circuit Breaker Options

  • (1) Single 100% rated fixed mounted insulated case circuit breaker, UL®489 listed, trip unit with adjustable Long time and Instantaneous trip settings
  • Circuit breaker position Aux Contacts (“a” and “b”)
  • No main circuit beaker
  • Dual main circuit beakers
  • Multiple generator circuit breakers
FS2-Series-Portable-Generator-Quick-Connection-Switchboard-Dual-Circuit-Breaker-APT-Power

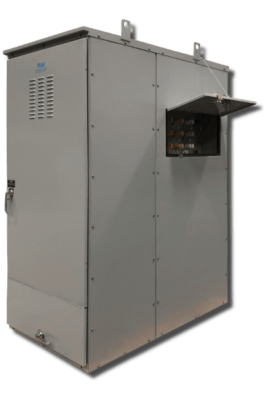

FS2-Series-208V-480V-Portable-Generator-Quick-Connection-Switchboard-APT-Power

Enclosure Options

  • Enclosure Options
    • NEMA Type 1 for indoor installation
    • NEMA Type 3R for outdoor installation
      • Type 304 stainless steel
      • Type 5052 aluminum
    • Powder coated ANSI 61 Gray
    • Internal Climate Control*
      • Anti-condensation Heater w/ Thermostat & Humidistat
      • All hardware is stainless steel
      • Door handles are padlockable
      • Door will include an integral lower flip door
        • Allows the main door to be closed with the mobile generator cables connected
        • Typical Dimensions
          • 86″H x 36”W x 39”D
    • Mechanical Lugs for Permanent facility-side connection
    • Alternative busbar connections with NEMA standard hole pattern and mechanical lugs for use in the event a mobile genset is used that does not have cables with ‘Cam-lok’ compatible plugs

*Requires 120V site power

Monitoring Options

  • Ground Fault Monitoring:
    • Can be easily set to trip the circuit breaker on ground fault or provide alarm indication only
    • Shunt Trip – 120VAC for tripping circuit breaker if phase rotation is incorrect or if ground fault logic is configured for tripping on ground fault
    • Configured at the factory per your order
      • Can easily be changed in the field
  • Phase Rotation Monitoring includes:
    • Insures mobile generator set phase rotation matches that of the facility
    • Provides visual assurance of correct phasing
    • Prevents circuit breaker from being closed if phase rotation is incorrect
    • Instructions to easily fix incorrect phase rotation are on a label inside each panel

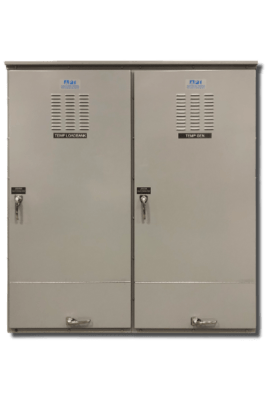

FS2-Series-Portable-Generator-Quick-Connection-Switchboard-Two-Doors-APT-Power

Other Options

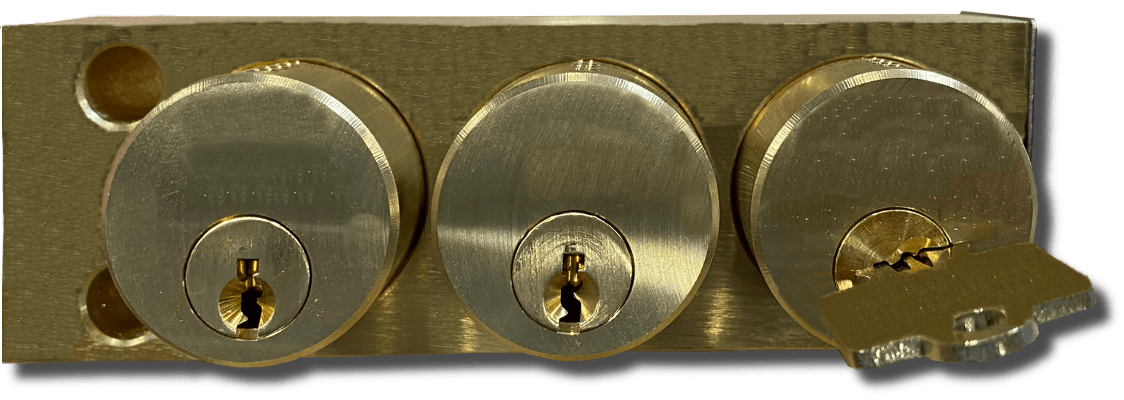

  • Kirk Key Interlocking prevents inadvertent paralleling of two sources
  1. Provision included for the circuit breaker
  2. Provision with Kirk Key integration into circuit breaker and bottom flip door
  3. Bottom flip door only
  4. Ship loose of matching locks for installation on customer’s equipment
  • Contact APT factory to discuss any further requirements you may have including:
    • Automatic Load Transfer
    • Distribution Switchboards
    • Service Entrance Rated
    • Load Shed Contacts
    • Generator Paralleling
    • 5kV – 15kV Applications
    • And more!

[caldera_form id=”CF5bdc5e6d26ec8″]

Portable Generator Quick Connection Switchboard

Pricing

See page 7 of the APT Generator Quick Connection Switchboard (FS2-Series) Brochure for base budget Generator Quick Connection Switchboard pricing information & part number building.

Portable Generator Quick Connection Switchboard Applications

Water & Wastewater Treatment Plants

Data Centers

Manufacturing

Healthcare

Education

Electric Utility & Manufacturing

Farming

Government
