APT Switchgear Master Control Systems

• Remote Switchgear SCADA System
• Automatic Paralleling of Generators, Utilities, & Renewable Power Sources
• Manual/Automatic Transfer from Normal to Back-up & Emergency Sources
• Utility Peak Demand Shaving & Microgrid Smart Power Systems
• Utility Intertie & Bypass/Isolation

Industrial

Commercial

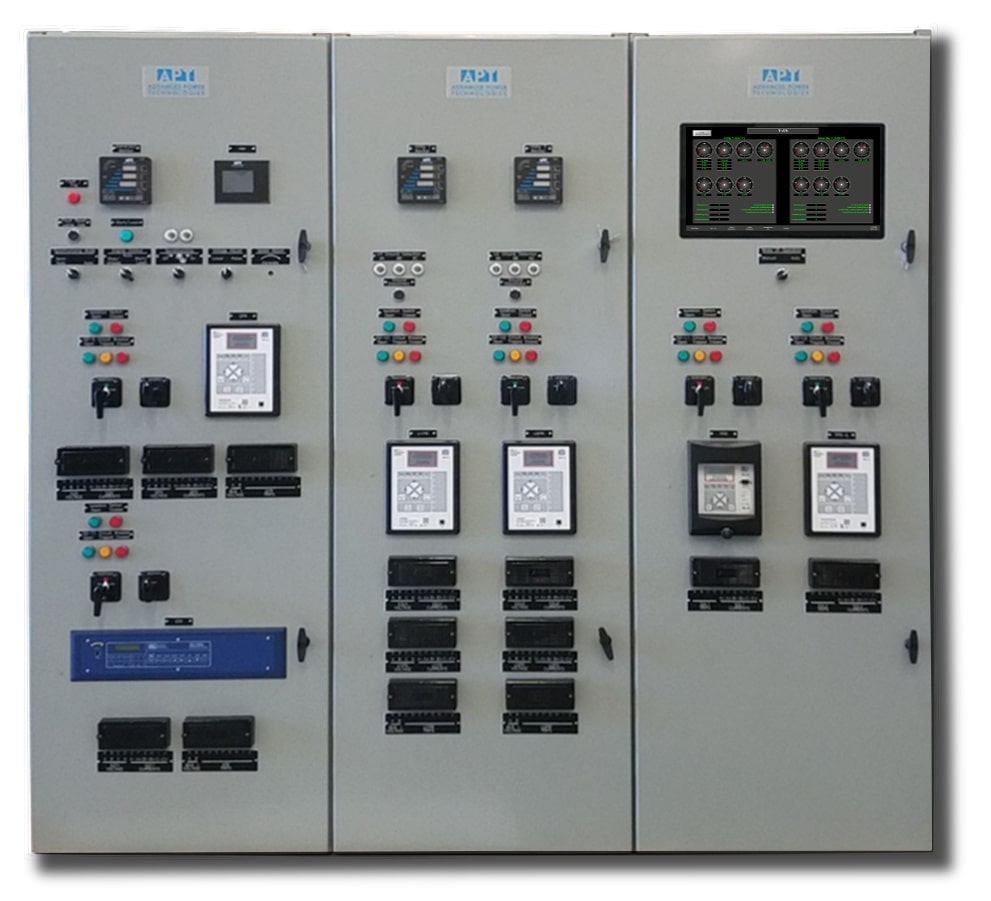

Smart-Microgrid-Nanogrid-Master-Distributed-Energy-Control-Panel-Industrial-Power-Demand-Storage-Generation-Management-Switchgear-APT-Power-2-Switchgear-Master-Controls

MCP-Series
Switchgear Master Control Panel

This is the Isolated or Line-up Integrated Switchgear Master Control Panel. It is one of our most popular items on our switchgear master controls lineup.

APT's MCP-Series features our own industrial computer equipped with the powerful APTView Control & Monitoring Software. It also provides SCADA graphical user interface for controlling the MCP functions. The MCP has several functions, including storing all monitored data every minute with date and time stamp. Plus, it has free license remote monitoring and remote-control software. You can even adjust setpoints and operation modes to adopt the system operation to changing needs.

APT-Power-Virtual-Switchgear-SCADA-System-Foss-SCADA-Markup

AV
APTView Remote SCADA System

APT Supervisory Control and Data Acquisition (SCADA) systems and Human Machine Interface (HMI) systems monitor and control both APT and 3rd party equipment. They do so through personal computers or your favorite web or network-connected mobile device.

MG-Microgrid-Master-Control-Module-APT-Power-System-Products

MG
Microgrid Interconnection

APT Microgrids focus on creating the energy systems of tomorrow; ones that are smart, energy efficient, sustainable, and reliable.

An APT Microgrid is a self-sustained local energy grid with expansive control capability. APT Microgrids have the ability to operate independently. In addition, they connect/disconnect from the utility power grid, in parallel with the normal source utility grid or isolated from the grid.

All our Switchgear Master Controls, including this one, are engineered to order.

UI-Utility-Intertie-Control-Module-APT-Power-6-Switchgear-Master-Controls

LDC
Load Demand Control

Load Sense Demand Switchgear Control

PS-Utility-Peak-Shaving-Control-Module-APT-Power-1-Switchgear-Master-Controls

PS
Peak Shaving
(Base Load)

APT Utility Peak Shaving Switchgear is able to parallel with the utility continuously. This is for the purpose of peak shaving and load testing for a standby generator. As a result, this increases functionality of existing standby power system. Finally, our Utility Peak Shaving Switchgear can dynamically switch to Standby Mode should an outage occur.

UI-Utility-Intertie-Control-Module-APT-Power-6-Switchgear-Master-Controls

UI
Utility Switchgear & APT Intertie

Our IEEE 1547 Compliant Utility Intertie Switchgear is designed for Facility Interconnection. It connects loads to the utility transmission system at the 2.4kV through 38kV voltage classes.

APT's "-UI" Switchgear has several customizable features, including instrumentation transformers to satisfying specific utility intertie switchgear requirements

UP-Utility-Paralleling-Switchgear-Control-Module-APT-Power-Switchgear-Master-Controls

IM
Island Mode Control

Island Mode Paralleling & Transfer Switchgear Control

UI-Utility-Intertie-Control-Module-APT-Power-6-Switchgear-Master-Controls

LS
Load Shed Control

Load Shedding with or without Priority Load Adding

UP-Utility-Paralleling-Switchgear-Control-Module-APT-Power-Switchgear-Master-Controls

IE
Import/Export Control (add-on to UP/PS)

Generator Import & Export Control Switchgear
